O Ring Manufacturers, Suppliers & Dealers in India

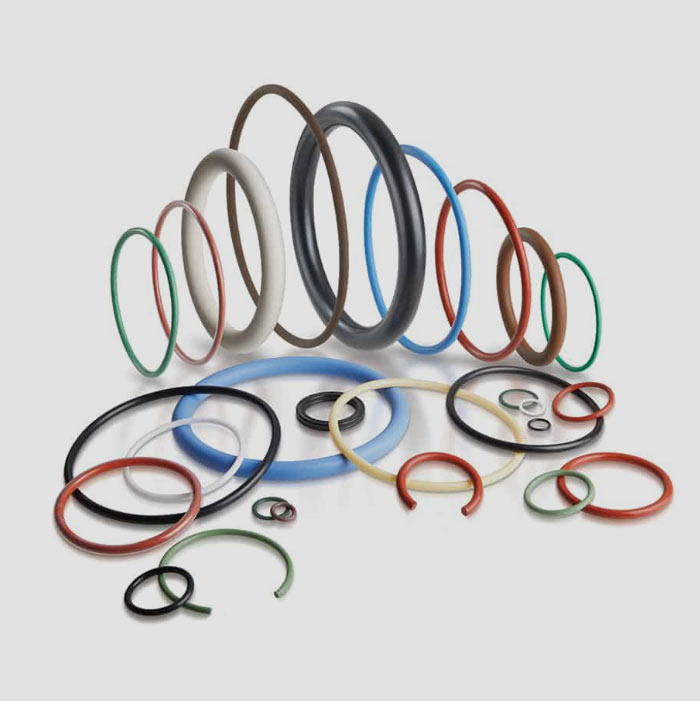

Shree Datta Deep Rubber Products is one of the leading O Ring Manufacturers, suppliers and dealers in India. offer high-quality rubber O Rings help in sealing connections to prevent leakage of liquids or gases, ensuring efficiency, safety, and reliability in industrial and mechanical systems.Our O Rings are made from premium quality materials like NBR, EPDM and Silicon by ensuring excellent chemical resistance.
O Ring Manufacturers for Industrial & Automotive Industry
As one of the trusted O Ring Manufacturers for Industrial and Automotive applications in India, SHREE DATTA DEEP RUBBER PRODUCTS offers precision-engineered sealing solutions designed to perform under extreme conditions. They are made to fit into a groove and be crushed between two surfaces and provide a reliable, leak-proof seal against fluids (liquids or gases) under both non-moving (static) and moving (dynamic) conditions.
Types of O Ring:
Being as leading o ring manufacturers in India, we provided different types according to material and applications which are given below.
-
By Profile
- Standard O-Ring: O ring dealers in India is the most prevalent one with a standard cross-section which is circular in metal o rings.
- Encapsulated O-Ring: This is a type of core consisting of a standard elastomer, such as Viton or Nitrile, which is covered with a coating of PTFE to increase chemical resistance and sealing.
- Cord Ring: O-ring cord that can be cut when necessary to fit the desired size seal to be applied to use.
-
By Application
- Static O-Ring: The use is done between the two surfaces that do not move in relation to one another for o ring suppliers in India.
- Dynamic O-Ring: Between parts that move, the materials are stronger and wear-resistant, and they are needed more often
-
By Material
- Nitrile (Buna-N): A general-purpose grade, suitable in oil, fuel and water.
- Fluorocarbon (FKM/Viton): It is highly resistant to high temperatures and most chemicals.
- Silicone: This has a very high resistance to extreme temperatures but it is not resistant to oils.
- EPDM (Ethylene Propylene Diene Monomer): Weather, ozone and steam resistant.
- PTFE (Polytetrafluoroethylene/Teflon): a rigid compound that is highly chemical inert and has low frictional values and commonly utilized at extreme temperatures.
Advance Technical Specifications of O ring:
We've added below a specialized table of o ring in India that provides further technical specification information
| Specification Category | Key Parameters | Typical Range / Standard |
|---|---|---|
| I. Dimensional Control | Standard | AS568 (Inch) / ISO 3601 (Metric) |
| Cross-Section (CS) | 0.070" (1.78 mm) to 0.275" (6.99 mm) (AS568 Series) | |
| Tolerance Class | ISO 3601-1 Class B (General) or Class A (Aerospace/Tighter) | |
| Surface Quality | Controlled by ISO 3601-3 grades (Limits for flash, flow lines, etc.) | |
| II. Material Properties | Polymer Types | NBR, FKM, EPDM, Silicone, FFKM |
| Hardness | 70 Shore A (Most common) to 90 Shore A (High Pressure) | |
| Compression Set | <20% (Desirable for long life) | |
| Temperature Range | Material Dependent (e.g., FKM up to 200∘C) | |
| III. Application/Installation | Squeeze (Compression) | 15% to 30% of CS |
| Gland Fill | 50% to 85% of Groove Volume | |
| Pressure Rating | Up to 1500 psi (No Back-up) to >5000 psi (With Back-up Rings) |
Features of O Ring
As o ring suppliers in India, we provided different benefits according to maintenance which are given below.
- High Pressure Capability: O ring kit can be effectively used to maintain a system that has a very high pressure of operation particularly when combined with plain backup rings. Silicon O rings render them suitable to the strenuous hydraulics and heavy machinery.
- Various Sealing Applications: These can be used in either a non-moving or a moving sealing application. O ring manufacturers in India broad flexibility enables engineers to apply one trust-worthy product in a large number of designs.
- Broad Line of Materials: NBR, EPDM, FKM (Viton), and Silicone are all available and can withstand oils, acids, chemicals and extreme temperatures. Rubber Viton o ring makes sure that you have always had the right seal to your own fluid environment.
- Cost-Effective Solution: It is extremely cheap and fast to install compared to complex mechanical seals, and best sealing performance per rupee. Green Viton O Ring deemphasize overall assembly time and cost of operations in the long-term.
- Simple Design and Compact Design: The round cross-section facilitates the ease of manufacture and the design allows easy installation in standardized grooves. Rubber O ring results in reduced production cost and a shorter time spent in replacement in the case of maintenance.
Applications of O Ring
Serve as o ring dealers in India, it is applicable in different system which has given below.
- Automotive Engines and Systems: Generally used to seal oil pans, engine covers, fuel injectors, and other fluid lines to ensure that lubricants and fuel do not leak out. The fact that they resist high temperatures is essential to the safe and long-performing engine performance.
- Pumps and Valves: Pumps and control valves that contain water, chemicals, or slurries need pumps and valves to seal connections and shafts. These make sure that media is fixed and nothing gets contaminated to the outside environment.
- Industrial Piping & Flanges: Industrial piping and flanges are used to form a tight stationary seal between flanges on the pipe, which links various parts of industrial pipelines. This is very important in the chemical plants and refineries to prevent leakage.
- Medical Equipment and Appliances: Medical equipment and appliances are used in various fluid and gaseous delivery systems where purity and non-toxicity are of utmost importance. O ring suppliers in India offer effective seals in the machinery such as dialysis machines and food processing plants.
- Hydraulic and Pneumatic Cylinders: O ring manufacturers in India seal the gap between the piston/rod and the wall of the cylinder, and support the pressure pressurized fluid or air to not escape.
Where Mostly O Rings Used
- Ring Used For Cylinder
- Ring Used For Pressure Washer
- Ring Used For Water Filter
- Ring Used For Door Closer.
- O-rings Used For Hydraulic Cylinders
- O-ring Used For Ac Compressor
- O-rings Used For Pumps And Valves
Why Choose O Ring from Us?
- Technical Know-How: With the total technical knowledge, we assist you in choosing the right material and size to use.
- High Quality, Economical: We will deliver globally famous quality components at a cost that is affordable to both and the global market.
- Certified by ISO 9001:2015: O ring manufacturers in India produce all our products in accordance with international quality standards of management.
We are well established O ring manufacturers, suppliers, dealers in India. Offered ring allows easy maintenance of inventory and fast replacement of the product without any hassle in case of maintenance. It provides an efficient, cost-effective and straightforward means of leak prevention in the static and dynamic systems. It can withstand high temperature, high pressure, and hostile chemicals, and it can resist them better, which is due to the choice of the material. Contact us for more details.
FAQs:
An O-ring is a gasket, traditionally in the form of a torus (doughnut) that is installed in a groove and clamped down during installation. It is employed to assure that two or more parts are not spilled out.
Standard specification (number based) systems (usually AS568 in the US or ISO 3601 globally) of O-ring sizes are typically defined based on the inner diameter and cross-sectional diameter (or cross-sectional thickness). This renders it to be interchangeable and suitable in special uses.
Gasket is usually a flat cut or cast element that seals the space between two flat surfaces), whereas an O-ring usually seals a groove and has a cross-section of circular or torus cross-section where an axial or radial squeeze is commonly needed to maintain the seal.
